Surge immunity testing is a test project under EMS, which mainly evaluates the immunity of the EUT (Equipment Under Test) to transient induced voltages caused by lightning.



During the operation of the EUT, lightning strikes can induce high peak voltages on the power and signal lines. These voltages can cause a performance degradation or even damage the EUT. Surge testing simulates this scenario by using a surge signal generator to produce a spike voltage, which is coupled onto the power and data lines. The test observes whether the EUT can operate normally under such a high induced voltage impact.



JJR Laboratory in China is a third-party EMC testing agency. The laboratory has testing qualifications and capabilities for GB/T 17626, IEC 61000-4-5, EN 61000-4-5, GB/T 18595, CISPR 14-2, EN 55014-2 standards, and can provide third-party lightning surge immunity testing services.



Surge Immunity Testing Overview

Surge immunity testing is used to simulate the effects of pulses generated by natural lightning or when large capacitive loads are introduced into the power grid. It includes both power and signal line tests.



Power Line Testing

Includes tests between L and N lines, L to protective earth, N line to protective earth, and L&N to protective earth. The first case is differential mode interference, while the latter three are common mode interferences.



Signal Line Testing

For shielded cables, the interference is applied to the shield layer. For ground wires, the interference is applied to the signal line. For user lines, the interference is applied directly to the A and B lines.



Surge Immunity Testing Standards

- GB/T 17626.5-2008

- IEC 61000-4-5:2014+A1:2017

- EN 61000-4-5:2014 “Electromagnetic Compatibility - Testing and Measurement Techniques - Surge (Immunity) Tests”

- CISPR 14-2:2015

- EN 55014-2:2015 "Electromagnetic Compatibility Requirements for Household Appliances, Electric Tools, and Similar Appliances - Part 2: Immunity"

- GB/T 18595-2014 “Electromagnetic Compatibility Immunity for General Lighting Equipment”



Surge Immunity Testing Equipment

- Test Generator

- Coupling Devices

- Decoupling Networks

- Ground Reference Plane, etc.



Testing Environment

- Temperature: 15°C ~ 35°C

- Relative Humidity: 10% ~ 75% RH

- Atmospheric Pressure: 86 kPa ~ 106 kPa



Test Waveforms

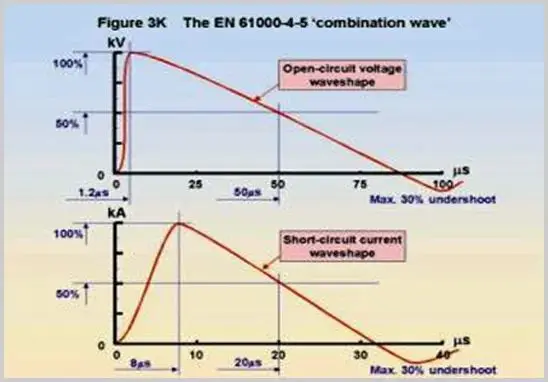

Surge waveforms include: 1.2/50(8/20) combination wave and 10/700 voltage wave. The 1.2/50 and 1.2/50(8/20) waveforms are used for power line and indoor signal line testing, while the 10/700 voltage wave is used for outdoor signal line surge tests.

 Surge Immunity Testing LAB(图1)

In the above waveforms, 1.2, 8, and 10 refer to the rise time (in microseconds), and 50, 20, and 700 refer to the pulse width (in microseconds). The energy in surge waveforms is much higher than that in EFT/B and ESD, but the interference bandwidth is much narrower.

 Surge Immunity Testing LAB(图2)
